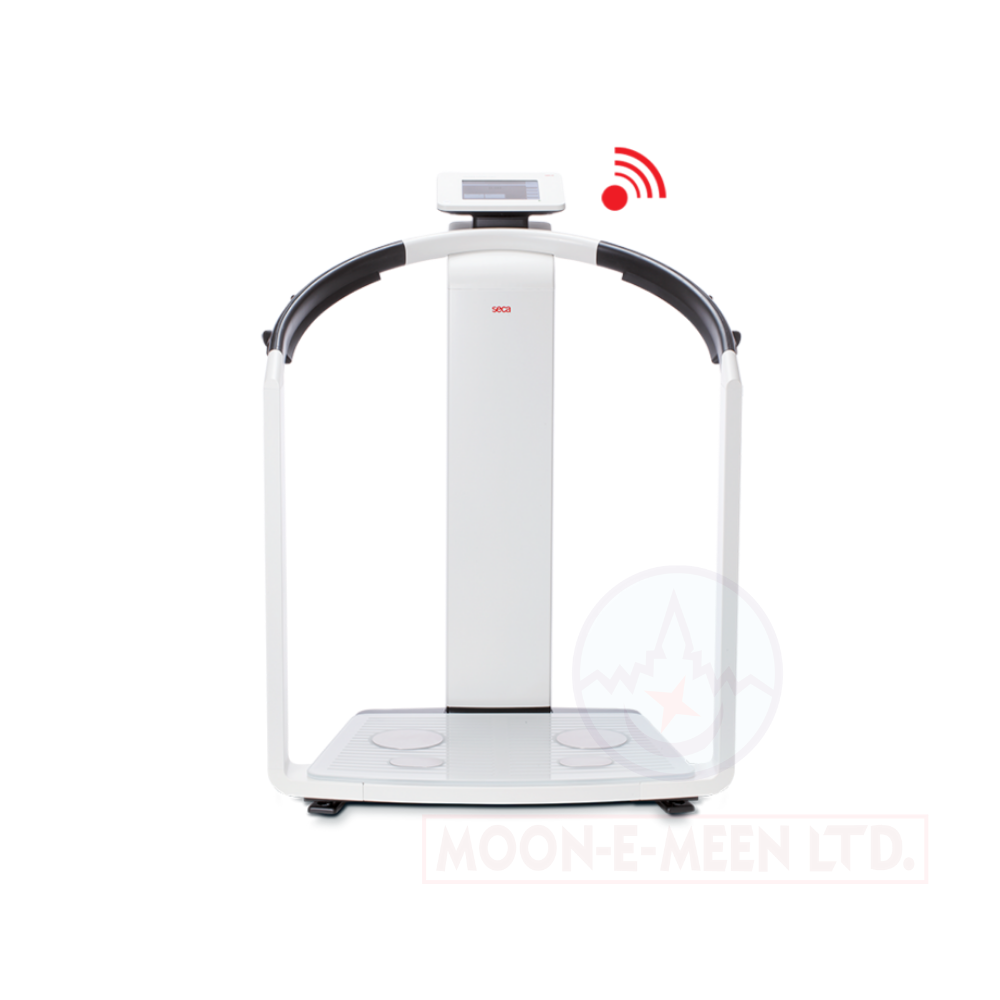

Measuring Scale (Seca mBCA 514)

Seca GmbH & Co. Kg.
Origin: Germany

General

Dimensions (WxHxD): 38.43 x 49.25 x 32.6 inch
Weight: 80 lbs
Display: 8.4″ Touch-screen display, can be rotated 360°
Power supply: Power adapter
Voltage: 100 V – 240 V
Power frequency: 50 Hz – 60 Hz
Interfaces: seca 360° wireless technology, USB 2.0, Ethernet
Compatible printers: seca 360° wireless, laser printer and inkjet printer via PC software: seca analytics 115

Bioelectrical Impedance Analysis

Measurement method: 8-point Bioelectrical Impedance Analysis
Type of electrode: Stainless steel, three (3) pairs of hand electrodes, two (2) pairs of foot electrodes
Measurement frequencies: 1; 1.5; 2; 3; 5; 7.5; 10; 15; 20; 30; 50; 75; 100; 150; 200; 300; 500; 750; 1,000 kHz
Measurements: Impedance (Z), Resistance (R), Reactance (Xc), Phase angle (φ)
Phase angle measurement range: 0° to 20°
Measurement range Impedance: 10 Ω to 1,000 Ω
Measurement segments: Right arm, left arm, right leg, left leg, right half of body, left half of body, torso
Measurement current: 100 μΑ

Measurement time:
All modes at frequencies of 5 kHz and 50 kHz (max. 30 seconds)
All modules at all frequencies (max. 90 seconds)

Technical data for scale

Capacity:
Weighing range 1 = 330 lbs
Weighing range 2 = 660 lbs

Fine graduation:
Weighing range 1 = 0.1 lbs
Weighing range 2 = 0.2 lbs

Information: This device is equipped with a wireless module that permits wireless transmission of measurements
for analysis and documentation purposes.
Data can be transmitted to the following devices
