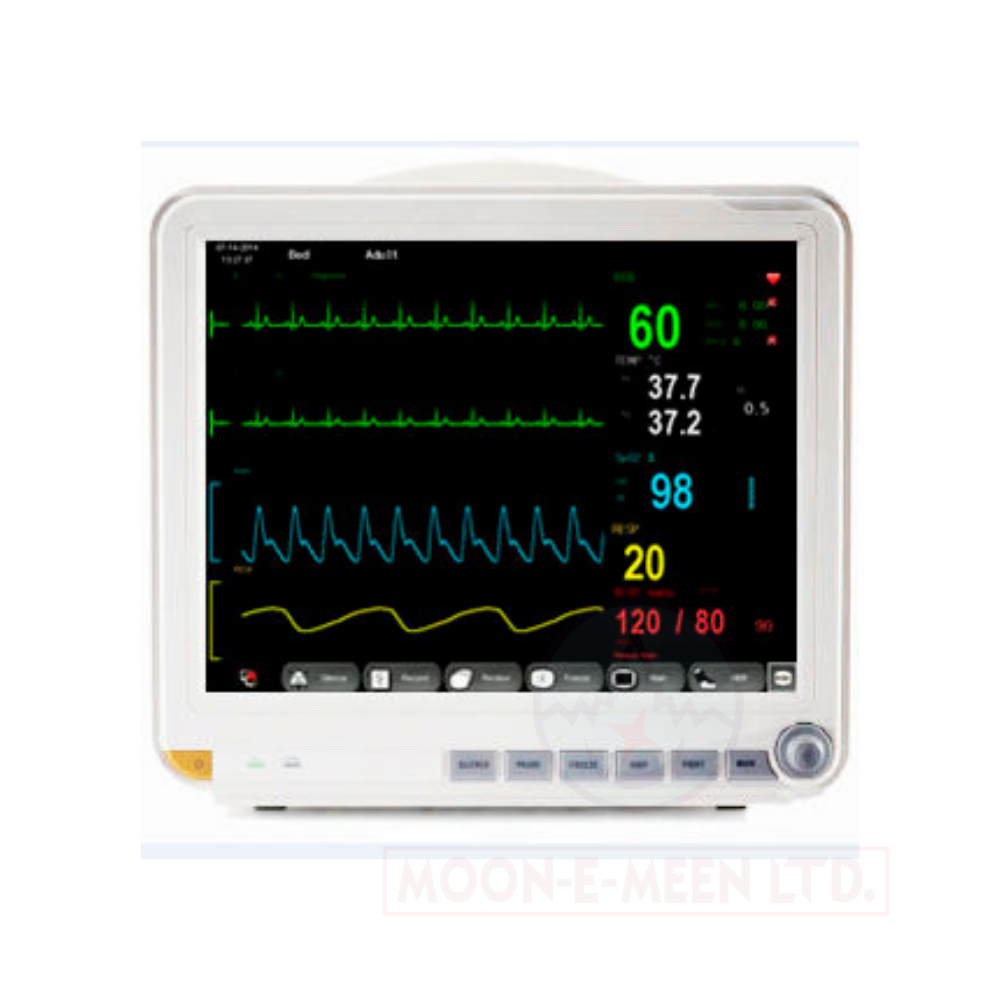

Patient Monitor (iZ15)

Dottmed
Origin: China

15 inch – Patient Monitor Technical Details

OS: Linux, Vista UI
Application: Adult, Pediatric, Neonate
Language: English/French/Russian/Polish/Spanish
UI: Standard, Large Fonts, CRG, T rend Interface
Screen: 15” highlight TFT screen, high sensitivity/drop resistance touch screen (optional)

Alarm: 4 level alarm tone, 3 level audio/visual alarm. Silence selectable. Alarm limit visible.

Network: Wire/Wireless central monitoring system, 3G/4G remote monitoring.

Power Supply: Built-in-Li-Poly battery, working more than 2-3 hours, 115-230V AC, 50-60Hz

Analysis: ST analysis: Pace-making analysis: More than 13 kinds arrhythmia Analysis: 15 kinds drug concentration analysis: Trend Data: 256 hours trend data storage: 400 groups NIBP data storage.

ECG:

Standard 3 leads or 5 leads: 12 leads optional
Adult HR: 15-300bpm
Neonatal/Pediatric HR: 15-150 bpm

CMRR: Diagnostic mode>90dB

Monitoring Mode>100dB
Operating mode>100dB
Amplitude: ±mV- ±700mV
Width: 0.1 ms – 2ms
Risetime: 10us- 100us

RESP: Measuring Method: RA-LL impedance

Range: Adult: 0-120BrPM
Neonatal/Ped: 0-150BrPM
Asphyxia Alarm: 10-40 seconds

NIBP: Measuring Method: Pulse wave oscillometry

Working Mode: Manual/Auto/Continual
PR Range: 40-240 bpm

SpO2: Measurement Type: Adult, Pediatric, Neonatal

Measurement Range: 0-100%
Precision: 70-100%; 2 Digital
0%-69%: No definition

PR: Measuring Range: 20-300bpm, Resolution: 1bpm

TEMP: 2 Channels, Measuring Range: 0-50C

Optional Parameters: EtCO2, 2-lBP, 50mm Printer, Wifi; OEM & SKD solution.
