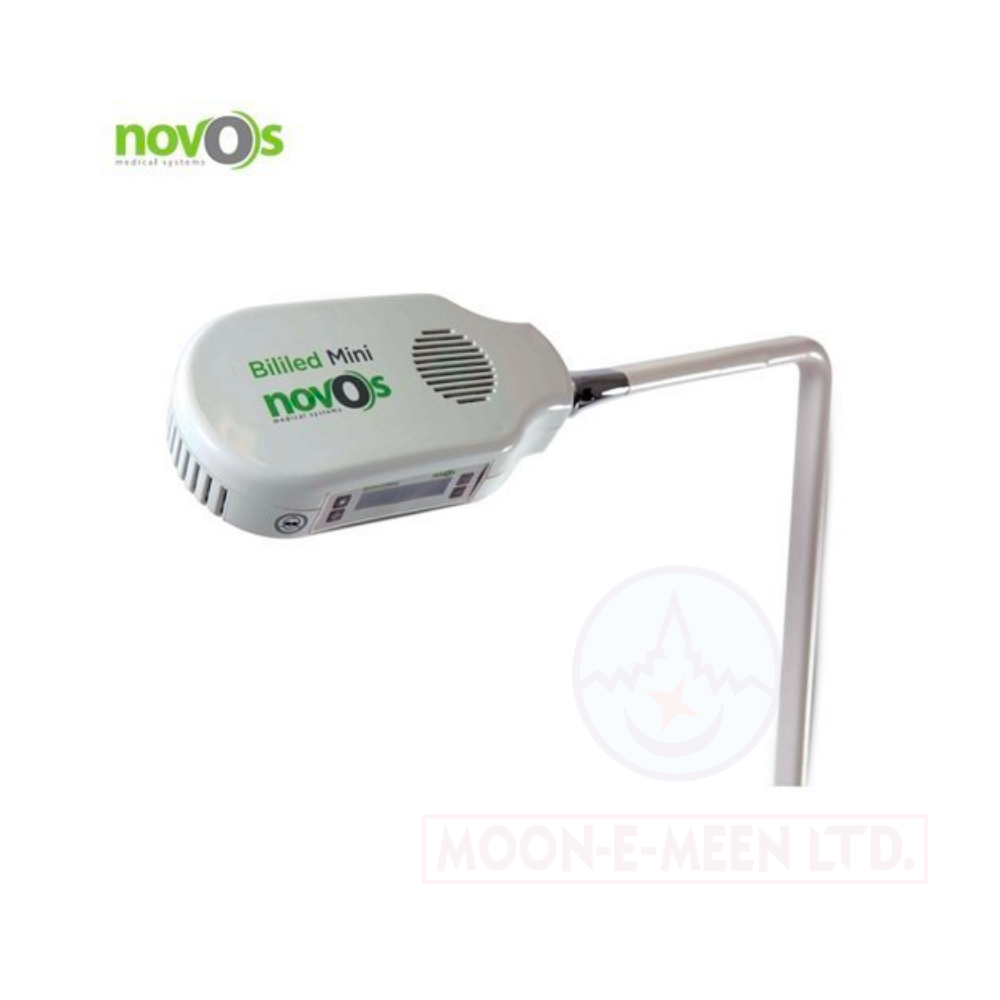

Phototherapy Unit-(Bililed Mini)

“” Bililed Mini NOVOS Medical
Origin: Turkey Protection against water and solid objects- IP20
Height- Device – 82 mm / With Transport Trolley – 1098 mm
Width- Device – 300 mm / With Transport Trolley – 834 mm
Depth- Device – 168 mm / With Transport Trolley – 504 mm
Carrier Height – 1008 – 1719 mm
Carrier Wheels- (Ø50) / 4 wheels in total, 2 with brakes (Ø50)
Light Source Weight- 1,15 kg
Transport Trolley Weight- 15 kg

Electrical Specifications
Supply Voltage and Current- 100-240 VAC, 0.2AC/12V DC, 0.7A DC
Fuse- 2A x 1
Supply Frequency: 50-60 Hz
Maximum Power Consumption: 30VA AC/ 8,5 W DC

Environmental Conditions
Operating Temperature- 20 °C – 30 °C
Operating Humidity- 5 – 95 %RH, non-condensing
Storage Temperature- (-20) °C – 60 °C
Storage Humidity- 5 – 95 %RH, non-condensing

Phototherapy LED Specifications
Number of LEDs- 4 Blue LEDs
Light Intensity- > 40 μW/ cm2/ nm
Wavelength- 440 – 460 nm
LED Module Life- 50.000 hours
