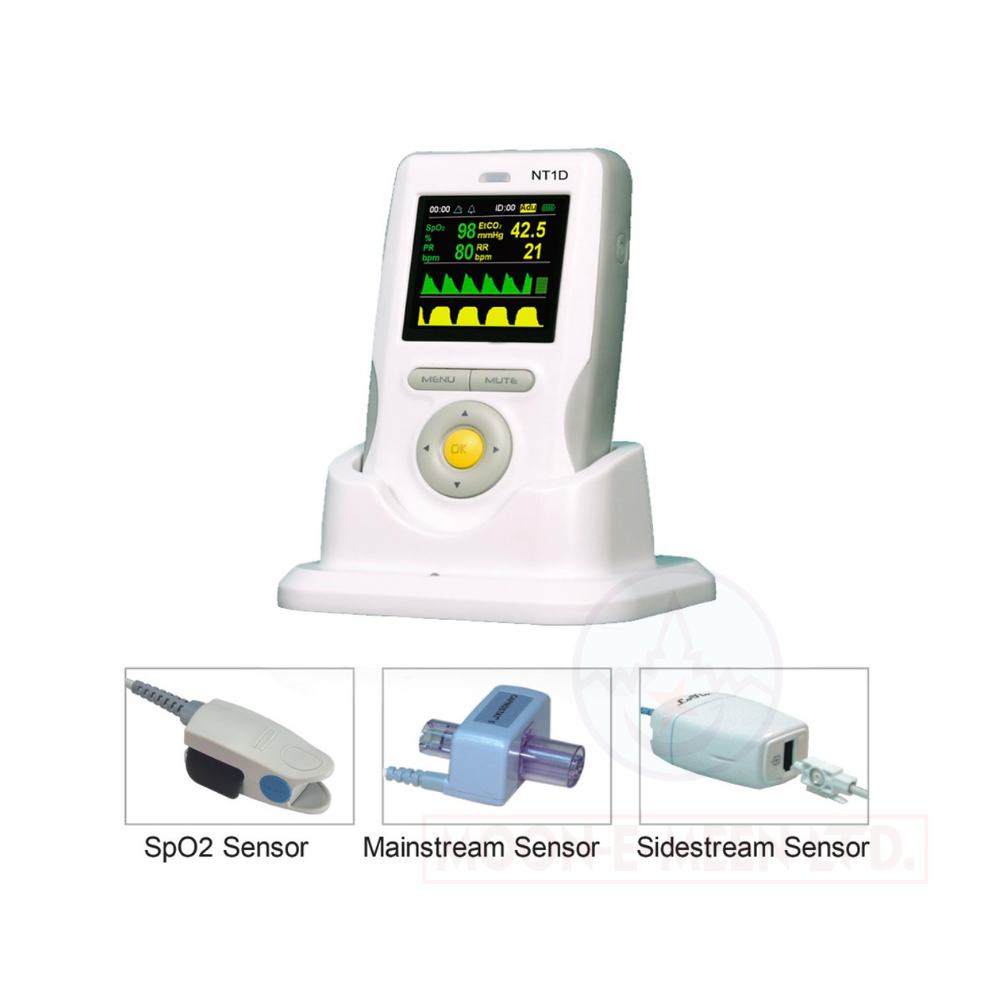

Pulse Oximeter (NT-1D)
Solaris Medical Technology Inc.
Origin: U.S.A
SpO2: Measurement Range: 0~100%
Accuracy: +2% during 70%~100%
0%~69% unspecified
Pulse Rate:
Measurement Range:30bpm~250bpm
Accuracy: 1bpm or ±2%
Whichever is greater
EtCO2: Measurement Range: 0~150mmHg Resolution: 0.1 mmHg (0-69)mmHg
0.25mmHg (70~150)mmHg
Accuracy: ±2mmHg (0~40)mmHg
±5% (41~70) mmHg
±8%(71-100) mmHg
±10% (101-105)mmHg
Respiration Rate:
Measurement Range: 0~150bmp
Accuracy: ±1bmp
Alarm:
Three levels of visual, audio alarms
whichever is greater
Data Transmission:
Power Requirements: DC: 9V 700mA
Four Standard “AA”” size batteries or rechargeable batteries.
Battery Capacity: ≥12 Hours (SpO2 Only)
Battery Capacity: ≥5 hours (SpO2+CO2)
Environment:
Operating Temperature: 0◦C~50◦C
Humidity: ≤95%
Altitude: -390m~5,000m
Transport/Storage Temperature: -20◦C~70◦C
Humidity:≤95%
Physical Characteristics:
Dimensions: 73mm (W) x127mm (H) x 23mm (D)
Maximum Weight: 500g
