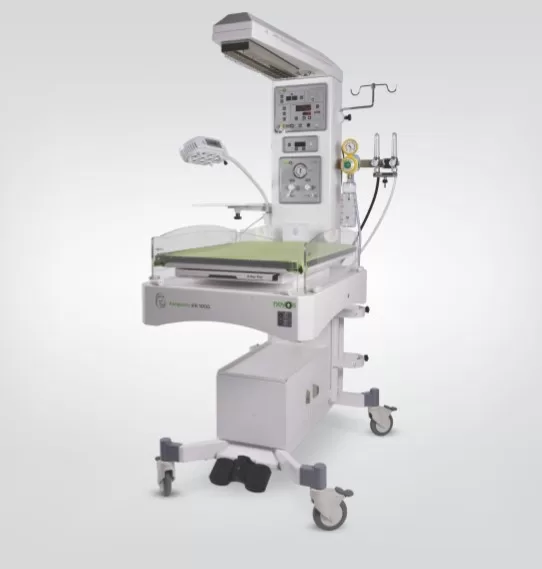

Baby Warmer Model – KR-1000

Origin: Turkey

Technical Specification:

Width: 90 cm

Depth: 110 cm

Height (Standard): 185 cm

Height (Adjustable, optional): 188 cm

Mattress size: 70cm x 55 cm

Maximum capacity of bed: 10 kg

Mattress Height (standard): 93 cm

Mattress height (with opt. bed module elevation): 113 cm



Characteristic Specification:

Supply voltage: 220VAC (±10%)

Supply Frequency: 50-60Hz

Bed Tilting: Up to 12˚

Examination Light: LED Lamps

Set temperature (Baby mode): 34-38°C in 0.1°C increments

Heater output: 0-100%, in 10% increments

Skin Temperature Display Range: 18°C -42°C

Temperature measurement accuracy: +/-0, 1°C

Hands free alarm silence: 10 minutes

Pre-warm mode: 30% @>25˚C

40% @ ≤25˚C



Easypuff T-piece resuscitation module (optional):

Peak inspiratory pressure (PIP): 5-7 cmH2O @ 8 L/Min

Positive-end expiratory pressure (PEEP): 1-10 cmH2O

Internal pressure limit (preset): 40 cmH2O

Flow capacity: 5 L/d (min)- 15 L/D (max)

Airway pressure monometer: -20-80 cmH2O

Display range: (±2% of full scale)



Air/O2 Blender (Optional)

Range: 21-100%O2

Accuracy: ± 3% full scale

Flowmeter range: 0-15 lpm

Flow limit range: 0-30 lpm



Alarms:

High Skin Temperature

Low Skin Temperature

High Temperature

Control Baby
